Thermography in the Electronics & Electrical Industry
Invisible defects, hotspots, unstable prototypes? Our thermography systems make even µm structures and µK differences visible— contactless, fast, and precise. Ideal for development, failure analysis, or inline quality assurance.
InfraTec Cameras and Systems for Electronics
Get maximumIR resolution – large & small test objects: detectors with up to (2,560 × 2,048) IR-pixels; pixel resolution < 1µm
Measure the smallest temperature differences – precise & innovativ: < 0,015 K; with lock-in down to the µK range
Detect the shortest reactions – fast & synchronous: up to 105 kHz, trigger, 10 GigE
Benefit from customized solutions – modular & scalable: lenses, software, complete test stations
Non-contact Measurement in Electronics with an Infrared Camera
The thermographic inspection of electronic components and assemblies is an established test procedure for failure detection and quality management – from the development of first prototypes to serial production.
Areas of Application for Thermal Imaging in Electronics
Electronic failure analysis for hotspot detection
Thermal Mapping, measurement of atypical temperature distributions on the surface of printed circuit boards, integrated circuits, and multichip modules using pcb thermography
Thermal design
Thermal management, thermal analysis within the thermal design process
Service life analysis
For example, by validating simulation calculations for self-heating or by analyzing thermal aging
Inline quality assurance in electronics manufacturing
Versatile tool for quality assurance of process parameters and products during production
Thermography Allows the Detection of
elevated contact resistance,
higher impedance caused by cable constriction
hidden cracks in connection points,
power losses due to high frequency (HF) mismatch,
faulty thermal connections of heat sinks,
short circuits, soldering defects such as cold solder joints,
thermally active watermarks as a protective measure against cyberattacks in the hardware and software area.
Advantages of Thermal Imaging in these Fields of Application
Safe temperature measurement even on live parts
Complete recording of the temperature distribution and its temporal progression of complex assemblies during operation
Does not affect the high frequency (HF) impedance of the test object or the heat dissipation from it, which helps to reliably avoid corresponding measurement errors
Clearly determining temperature differences in the µK range
Lock-in Thermography: Clearly Determine Temperature Differences in the µK Range
Thermal imaging has become a standard procedure in electronics. With increasing miniaturization and ever lower supply voltages, failure analysis is becoming more complex. Classic infrared cameras with resolutions of up to < 20 mK are sufficient in many cases, but they do have their limitations.
Lock-in Thermography is used to detect minute temperature differences in the µK range. In this process, the test object is analyzed non-destructively using periodic excitation. When using the lock-in method, the measurement time increases significantly compared to real-time measurement as the desired resolution increases and can take several minutes. It is therefore particularly helpful if such measurements can be made in one step using a large-format, high-resolution camera.
Benefits at a Glance:
Highest sensitivity: detect temperature differences in the µK range
Non-destructive analysis: Reliably detect defects through periodic excitation
Optimal results for complex components: Thanks to large-format, high-resolution cameras
Improved efficiency: Less stitching, less effort, lower costs
Detection and allocation of faults in the µK range

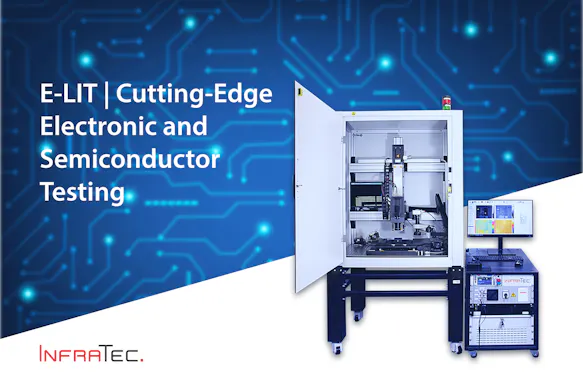

Electronics and Semiconductor Module Testing by means of Lock-in Thermography
Find out in our white paper how you can use lock-in thermography to detect faults in electronic and semiconductor components. Benefit from our practical tips and achieve the best possible measurement results with the E-LIT test bench from InfraTec.
Fields of Application for Thermography in Electronics Testing
Thermography is now a key tool in electronics development and manufacturing. It helps engineers and quality managers visualize heat distribution, identify sources of error at an early stage, and ensure the reliability of electronic assemblies. From the initial design phase up to series production, it provides valuable information for stable processes and high-quality products.
Electronic Failure Analysis
Failure analysis using thermography is essential for investigating the causes when the function of electronic products is impaired or safety-related problems occur. Infrared cameras allow accurate identification of atypical temperature distributions, both in terms of area and spatially. When high-resolution cameras are used in conjunction with lock-in thermography, even the slightest temperature differences in the µK range can be measured. High geometrical resolution enables analysis up to the smallest details.
Examples of Applications for Electronic Failure Analysis
Reliable detection of increased resistance during heat transfer
Detection of thermal anomalies in integrated circuits and their precise localization
Locating short circuits and other defects
Perform electronic circuit testing on integrated circuits, electronic circuits and power electronic ciruits for hot spots
thermos optical failure analysis in PCB design in the event of overheating
3D depth analysis of faults in multilayer printed circuit boards and multi-chip modules by adjusting the lock-in frequency
Electronics testing to identify thermal bridges, overheating, and other anomalies in electronic devices and circuits
Advantages of Thermal Imaging in Failure Analysis
Early detection of defects and safety-related weak points
Full-surface visualization of atypical temperature distributions in real time
Non-destructive analysis even for sensitive or complex assemblies
High precision up to the µK range thanks to lock-in thermography
Rapid localization of the cause instead of merely measuring symptoms
Thermal Design – Thermal Management Layouting
Thermal design of electronic components is a key factor in the development of new chip technologies and applications in power electronics. Thermal imaging can be used to identify potential weak points caused by excessive heat generation during the development phase, allowing adjustments to be made at an early stage.
Examples of Applications in Thermal Management Layouting
Analysis of temperature development and heat dissipation in PCB (printed circuit boards) design
Optimization of energy processing in the field of power electronics
Improvement of heat distribution in switching power supplies and power supply systems
Development of cooling strategies
Thermal management for quality assurance
Validation of simulation calculations for self-heating of electronic objects
Advantages of Thermography in Thermal Design
Full-surface display of temperature distribution instead of selective measurement helps to ensure that errors are not overlooked
Contactless and non-destructive, even with sensitive components
High temporal resolution to visualize dynamic heat processes
Service Life Analysis
When developing new electronic components or assemblies, there is initially no application-specific data or information available on service life and performance losses. Predicting these parameters as accurately as possible can be a decisive competitive advantage. Manufacturers and developers therefore carry out complex temperature or load cycle tests to simulate the aging of electronic components.
The high reliability of InfraTec infrared cameras pays off, especially in 24/7 long-term and reliability tests. With the latest models, programmed measurement series for long-term and stress tests can be stored directly on the camera's internal memory (SDK). Add-ons to the IRBIS® 3 analysis and evaluation software also enable the use of programming and development environments that facilitate real-time data acquisition and signal processing.
Remote control reduces sources of interference such as camera shake when touching the camera.
Examples of Applications in Service Life Analysis
Analysis of temperature development during electrical, thermal, or mechanical stress tests on and around electronic objects
Measurement of temperature-time behavior during long-term tests
Advantages of Thermal Imaging in Service Life Analysis
Early prognoses on the service life and performance losses of electronic components
Realistic simulation through temperature and load cycle tests
Complete documentation of temperature-time curves during long-term tests
High reliability in continuous operation (24/7) for valid results
Reduction in costs and risks, as weak points are identified before market launch
Electronics Manufacturing
In electronics manufacturing, thermographic temperature measurement is used as a versatile tool in quality assurance.
Application Examples in Electronics Manufacturing
Permanent monitoring of critical technological parameters
Inline inspection of products in production
Final functional testing
Advantages of Thermal Imaging in Electronics Manufacturing
Inline quality control during production without interrupting the process
Early failure detection → lower rejection rates, increased process stability
Contactless analysis, even on sensitive or live components
Fast end-of-line analysis for reliable product release
Continuous thermo optical process monitoring of critical parameters for reproducible quality
High-performance Thermography Systems by InfraTec
up to (2,560 × 2,048) native IR pixels for analysis of complex assemblies – 16 times the resolution of standard VGA cameras with (640 × 512) pixels
with pixel resolutions of less than up to 1.3 µm with InfraTec's microscopes and even less than 1 μm using SIL lenses
allow easy manipulation of the DUT (Device Under Test) during measurement
between defective and intact structures in the range of a few microkelvins due to high thermal resolution up to < 0.015 K or in the µK range in combination with the lock-in method
of up to ± 1 °C or 1% for reliable measurements and comparability
Analysis of very fast temperature pulses in full-frame format or up to 105 kHz in partial-frame mode
Optimal setup for LIT, low jitter, and low latencies
Direct linking of temperature measurements with other process parameters
Individual Configuration of Thermographic Systems for Electronics and Electrical Engineering
Depending on the respective task, users can get the equipment configured meeting their specific needs. The starting point will usually be the thermographic camera. Cooled or uncooled detector? Which detector format? Shall the thermographic system support lock-in thermography? How much flexibility is desired for the distance between the measurement object and the camera? What influence does this have on the choice of microscopic lenses and close-ups? Depending on what the answers to these questions will be, InfraTec can offer thermographic systems of various performance levels - from the individual camera to the automated modular E-LIT test bench.
Examples for Thermography in Electronics Applications
Events On Demand
We offer a wide range of on-demand webinars on thermography in the electronics and electrical industry, providing in-depth information on specific applications and solutions.
Infrared Lock-in Thermography for Inspection of Electronics and Integrated Circuits
Micro-Thermography – Contactless Temperature Measurement in the Micrometer Scale
Thermography Solutions for Power Electronics – Precise, Non-contact and High-speed
Find out more about the on demand events
Futher Relatet Online Event Topics
Excellent Coordination of Infrared Camera, Thermography Software and Peripherals
InfraTec places great importance on the optimal interaction between infrared camera and thermography software. In electronics manufacturing, IRBIS® 3 software supports both passive and active thermography methods. It offers powerful tools for users to accurately detect and precisely display defects.
Functions & Benefits for Fault Localization:
Comparison of current thermograms with reference images
Display of amplitude and phase images in lock-in thermography
Individual parameter settings for precise fault localization
When measuring printed circuit boards and hybrid assemblies, the variety of materials (metals, ceramics, plastics) poses a particular challenge. Different surface properties require precise adjustment of the emissivity. With the IRBIS® 3 software, the emissivity for each individual pixel can be both determined and adjusted, automatically correcting the measured temperature to take into account the emissivity and ambient temperature.
Precise Temperature Measurement with IRBIS® 3:
Emissivity can be set individually for each pixel
Automatic temperature correction, including environmental influences
Correction models take into account radiation from the environment, windows used, or attenuation properties of the measurement path
Lenses
The extensive range of high-quality precision interchangeable lenses allows the field of view to be adapted to almost any measurement situation:
Wide angle, normal and telephoto lenses
Close-up attachments
Microscope lenses
Solid Immersion Lenses (SIL)
Accessories
Additional to the lenses, users can choose from a wide range of accessories:
Excitation controllers for active thermography
Two-axis positioning systems
X-Y measurement tables
Motorised microscope stands
Would You Like to Know More?
It is not unusual for tasks to be associated with special requirements. Discuss your specific application needs with our specialists, receive further technical information or learn more about our additional services.
FAQ Thermografie in der Elektronik
The principle of non-contact thermographic temperature measurement allows the accurate determination of the temperature of small objects with low heat capacity. Even when using the smallest contact temperature sensors, this is often impossible because their heat dissipation frequently distorts the measurement results. In many cases, the use of thermocouples is prevented right from the start by the design or function of the circuit itself. In addition, the structures of electronic measurement objects are sometimes so small that temperature sensors cannot be attached to them at all.
Thermography systems with high geometric resolution can clearly visualize even the smallest structures and, in addition, precisely determine their temperature distribution and temporal progression. With the aid of special macro attachments and powerful infrared microscope lenses, users can thermographically measure hotspots only a few micrometers in size on the surface of components such as semiconductor devices. With the additional use of SIL lenses (solid immersion lenses) placed on the measurement object, even smaller structures can be detected. In combination with appropriate active thermography methods, temperature differences in the µK range can be clearly visualized for fault localization.
Electronic Guide: Electronics / Electrical Engineering
Download our electronic guide “Electronics / Electrical Engineering” and get further information about thermography systems for use in development and production.
