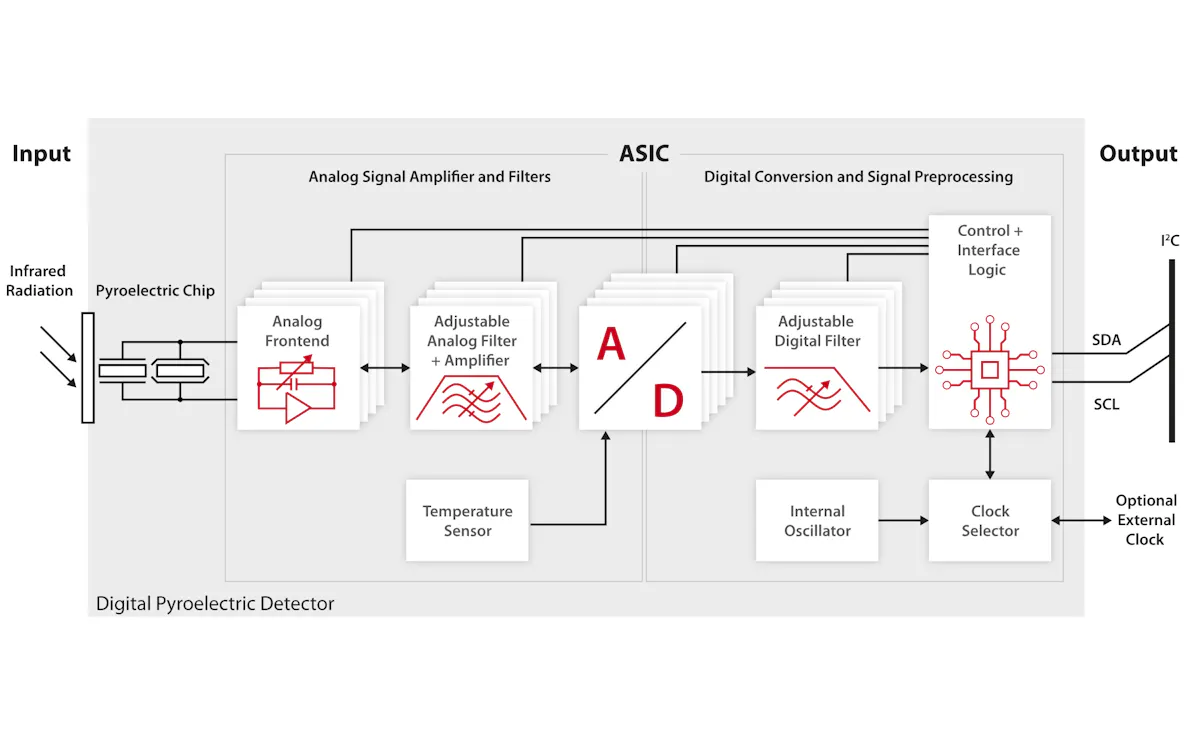

The integrated ASIC, which already contains an A/D converter, eliminates complex signal processing steps and the detector can be connected directly to the microcontroller without adjustments. This enables fast and simple system integration. The user is provided with the digital measured values with a sampling rate of up to 1 kHz, which can be read out and directly processed without additional hardware components via the I²C interface.

The entire signal conversion of the detector is spatially concentrated and shielded, resulting in a higher electromagnetic compatibility (EMC). The detector is more resistant to electromagnetic interference, so that EMC measures can be reduced by the user.

The most important features for characterising the performance of a pyroelectric detector are the frequency-dependent sensitivity, noise density and detectivity D*. Depending on the measurement system (measurement setup) and principle, there are different requirements for a well-dimensioned signal processing. The digital detector offers full flexibility in the configuration of the detector parameters, during development and also in later use. The sensitivity of the digital detector can be flexibly adjusted depending on the radiated power falling on the detector, in order to optimally utilise the subsequent input voltage range of the A/D converter. Feedback resistor Rf and feedback capacitance Cf can be set individually for each spectral channel of the detector. This allows the user to optimally adapt the performance of sensitivity and stability to the requirements of the application.

Converts the analogue signal, which can be filtered and amplified in several stages, directly into a digital signal with a 16-bit resolution.
